ConstraintLayout

introduce

https://developer.android.google.cn/reference/androidx/constraintlayout/widget/ConstraintLayout

https://developer.android.com/develop/ui/views/layout/constraint-layout

https://juejin.cn/post/6949186887609221133#heading-6

Widgets dimension

widget的尺寸可以通过设置android:layout_width和android:layout_height的属性值来指定，有如下三种方式：

• 使用具体值
• 使用WRAP_CONTENT，这样widget会计算自身的尺寸
• Using 0dp, which is the equivalent of “MATCH_CONSTRAINT“ (使用0dp，这等于“MATCH_CONSTRAINT” )

Group

可以控制一组控件的隐藏和显示

<androidx.constraintlayout.widget.Group
      android:id="@+id/gp_1"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:visibility="gone"
      app:constraint_referenced_ids="cl_h4,cl_h2" />

((Group)findViewById(R.id.gp_1)).setVisibility(View.GONE);

​ findViewById(R.id.gp_2).setVisibility(View.INVISIBLE); doesnt not work

https://juejin.cn/post/6844903875569254414#heading-17

Guideline使用

https://developer.android.com/reference/android/support/constraint/Guideline.html

app:layout_constraintGuide_percent="0.2"
app:layout_constraintGuide_begin="100dp"

特色属性

layout_constraintDimensionRatio

指定高度，宽度随着宽高比自适应

<ImageView
    android:id="@+id/iv_img01"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:src="@mipmap/img_1"
    app:layout_constraintDimensionRatio="1:1"
    app:layout_constraintLeft_toLeftOf="parent" />

layout_constraintHorizontal_bias 先设置约束

Bias

上面的水平居中,是使用的与父亲左侧对齐+与父亲右侧对齐. 可以理解为左右的有一种约束力,默认情况下,左右的力度是一样大的,那么view就居中了.

当左侧的力度大一些时,view就会偏向左侧.就像下面这样.

layout_constraintHorizontal_bias 水平约束力
layout_constraintVertical_bias 垂直约束力

<android.support.constraint.ConstraintLayout
    <Button
        android:text="按钮1"
        app:layout_constraintHorizontal_bias="0.3"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"/>
</android.support.constraint.ConstraintLayout>

上面代码就偏左约束

WRAP_CONTENT: 强制约束

我们可能希望使用WRAP_CONTENT，同时仍然强制执行约束以限制最终的尺寸

• app:layout_constrainedWidth=”true|false”

button1居中显示，button2约束在button1的右边、parent的左边：

<Button
    android:id="@+id/button1"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="aaaaaaa"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"/>

<Button
    android:id="@+id/button2"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="22222222222222222222222222222"
    app:layout_constrainedWidth="true"
    android:layout_marginTop="40dp"
    app:layout_constraintTop_toTopOf="@id/button1"
    app:layout_constraintStart_toEndOf="@id/button1"
    app:layout_constraintEnd_toEndOf="parent"/>

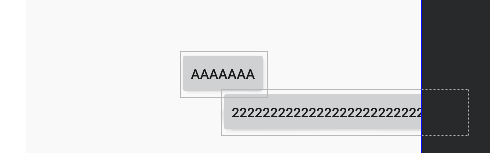

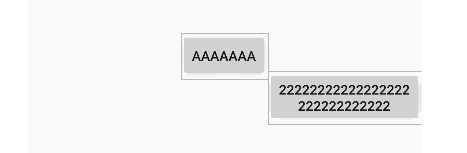

对button2使不使用app:layout_constrainedWidth="true"的效果如下：

约束width前 & 约束width后

占用父布局的比例

chain

3个Button 两两依赖,相当于组成了一个链

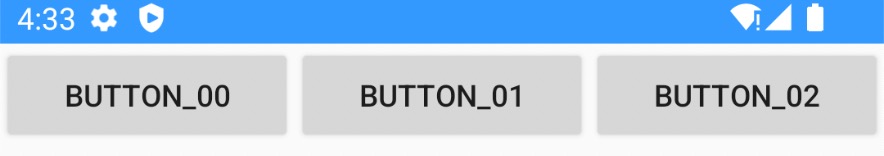

Button均分 width = match_constraint (0dp)

<Button
       android:id="@+id/bt_00"
       android:layout_width="0dp"
       android:layout_height="wrap_content"
       android:text="Button_00"
       app:layout_constraintLeft_toLeftOf="parent"
       app:layout_constraintRight_toLeftOf="@+id/bt_01" />

   <Button
       android:id="@+id/bt_01"
       android:layout_width="0dp"
       android:layout_height="wrap_content"
       android:text="Button_01"
       app:layout_constraintLeft_toRightOf="@+id/bt_00"
       app:layout_constraintRight_toLeftOf="@+id/bt_02" />

   <Button
       android:id="@+id/bt_02"
       android:layout_width="0dp"
       android:layout_height="wrap_content"
       android:text="Button_02"
       app:layout_constraintLeft_toRightOf="@+id/bt_01"
       app:layout_constraintRight_toRightOf="parent" />

app:layout_constraintHorizontal_weight=”2”`　

看属性也可以猜到是干嘛用的了.

<androidx.constraintlayout.widget.ConstraintLayout
       android:layout_width="match_parent"
       app:layout_constraintTop_toBottomOf="@+id/guideline_00"
       android:layout_height="wrap_content">
       <Button
           android:id="@+id/bt_00"
           android:layout_width="0dp"
           android:layout_height="wrap_content"
           android:text="Button_00"
           app:layout_constraintHorizontal_weight="2"
           app:layout_constraintLeft_toLeftOf="parent"
           app:layout_constraintRight_toLeftOf="@+id/bt_01" />

       <Button
           android:id="@+id/bt_01"
           android:layout_width="0dp"
           android:layout_height="wrap_content"
           android:text="Button_01"
           app:layout_constraintHorizontal_weight="1"
           app:layout_constraintLeft_toRightOf="@+id/bt_00"
           app:layout_constraintRight_toLeftOf="@+id/bt_02" />

       <Button
           android:id="@+id/bt_02"
           android:layout_width="0dp"
           android:layout_height="wrap_content"
           app:layout_constraintHorizontal_weight="1"
           android:text="Button_02"
           app:layout_constraintLeft_toRightOf="@+id/bt_01"
           app:layout_constraintRight_toRightOf="parent" />
   </androidx.constraintlayout.widget.ConstraintLayout>

Button均份　宽度不为match_constraint

<Button
           android:id="@+id/bt_10"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:text="Button_00"
           app:layout_constraintLeft_toLeftOf="parent"
           app:layout_constraintRight_toLeftOf="@+id/bt_11" />

       <Button
           android:id="@+id/bt_11"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:text="Button_01"
           app:layout_constraintLeft_toRightOf="@+id/bt_10"
           app:layout_constraintRight_toLeftOf="@+id/bt_12" />

       <Button
           android:id="@+id/bt_12"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:text="Button_02"
           app:layout_constraintLeft_toRightOf="@+id/bt_11"
           app:layout_constraintRight_toRightOf="parent" />

chainStyle

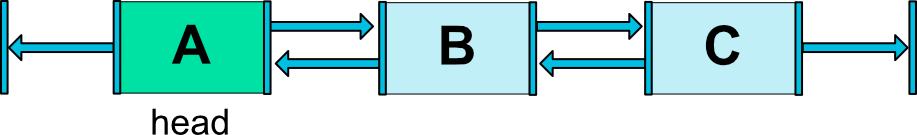

Chains are controlled by attributes set on the first element of the chain (the “head” of the chain):

The head is the left-most widget for horizontal chains, and the top-most widget for vertical chains.第一个元素决定链style

而且只有放在头节点才有效，否则都没用

spread Chain

layout_constraintHorizontal_chainStyle 这个属性默认是spread

元素展开

mineutil

activity_constraint.xml

<Button
    android:id="@+id/bt_00"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button_00"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toLeftOf="@+id/bt_01" />

<Button
    android:id="@+id/bt_01"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button_01"
    app:layout_constraintLeft_toRightOf="@+id/bt_00"
    app:layout_constraintRight_toLeftOf="@+id/bt_02" />

<Button
    android:id="@+id/bt_02"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:text="Button_02"
    app:layout_constraintLeft_toRightOf="@+id/bt_01"
    app:layout_constraintRight_toRightOf="parent" />

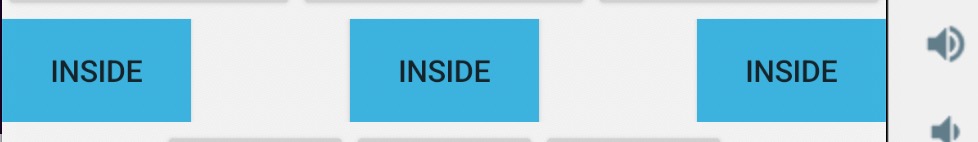

Spread inside chain

endpoints of the chain will not be spread out (两端不会展开)

其实就相当于两端的约束去掉了

<Button
    android:id="@+id/bt_10"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Inside"
    android:background="@android:color/holo_blue_light"
    app:layout_constraintHorizontal_chainStyle="spread_inside"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toLeftOf="@+id/bt_11" />

<Button
    android:id="@+id/bt_11"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Inside"
    android:background="@android:color/holo_blue_light"
    app:layout_constraintLeft_toRightOf="@+id/bt_10"
    app:layout_constraintRight_toLeftOf="@+id/bt_12" />

<Button
    android:id="@+id/bt_12"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Inside"
    android:background="@android:color/holo_blue_light"
    app:layout_constraintLeft_toRightOf="@+id/bt_11"
    app:layout_constraintRight_toRightOf="parent" />

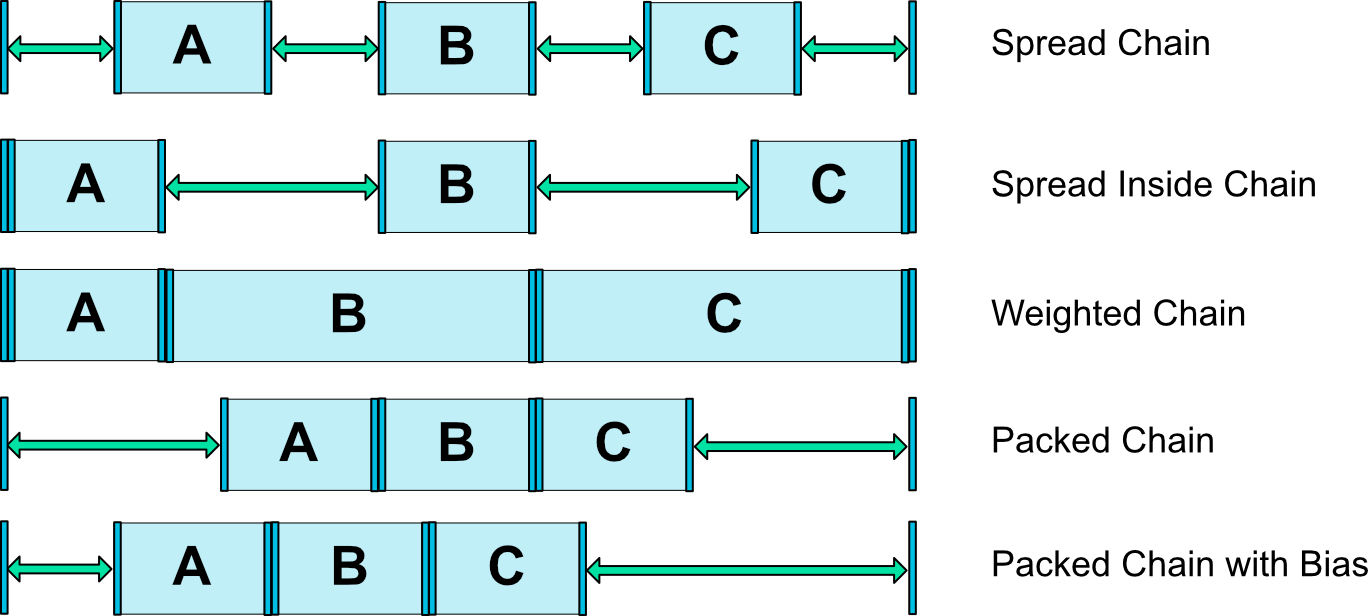

Weighted chains

看上面官方的图就能理解了

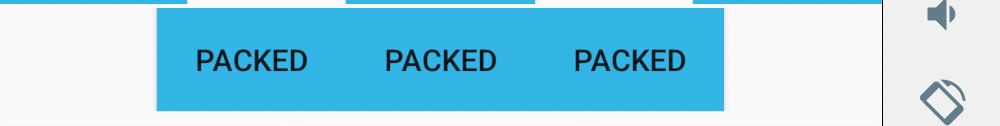

packed chains

<Button
    android:id="@+id/bt_20"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packed"
    app:layout_constraintHorizontal_chainStyle="packed" //第一个有效
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toLeftOf="@+id/bt_21" />

<Button
    android:id="@+id/bt_21"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packed"
    app:layout_constraintLeft_toRightOf="@+id/bt_20"
    app:layout_constraintRight_toLeftOf="@+id/bt_22" />

<Button
    android:id="@+id/bt_22"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packed"
    app:layout_constraintLeft_toRightOf="@+id/bt_21"
    app:layout_constraintRight_toRightOf="parent" />

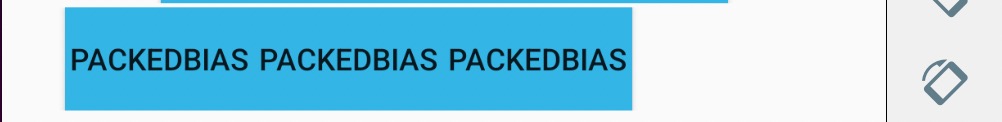

Packed Chain with Bias

<Button
    android:id="@+id/bt_30"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packedBias"
    app:layout_constraintHorizontal_bias="0.2"
    app:layout_constraintHorizontal_chainStyle="packed"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toLeftOf="@+id/bt_31" />

<Button
    android:id="@+id/bt_31"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packedBias"
    app:layout_constraintLeft_toRightOf="@+id/bt_30"
    app:layout_constraintRight_toLeftOf="@+id/bt_32" />

<Button
    android:id="@+id/bt_32"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:background="@android:color/holo_blue_light"
    android:text="packedBias"
    app:layout_constraintLeft_toRightOf="@+id/bt_31"
    app:layout_constraintRight_toRightOf="parent" />

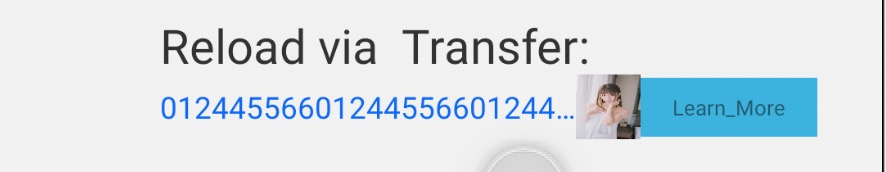

Barrier

用于控制 Barrier 相对于给定的 View 的位置， app:barrierDirection=”right”,表示barrier在constraint_referenced_ids给定ID的右侧,constraint_referenced_ids的id就是左侧的这些控件

输入信息挺有用的

https://mp.weixin.qq.com/s/QIuww9b0TsNjajEUS8c2fg

<android.support.constraint.ConstraintLayout
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_margin="@dimen/dimen_11">

      <TextView
          android:id="@+id/tv_order_num"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="订单编号：10002220000001234"
          android:textColor="#ff999999"
          android:textSize="19sp"
          app:layout_constraintTop_toTopOf="parent"
          app:layout_constraintStart_toStartOf="parent" />

      <TextView
          android:id="@+id/tv_order_pro"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:layout_marginTop="@dimen/dimen_11"
          android:text="订购产品：爱达康高血压监护服务"
          android:textColor="#ff666666"
          android:textSize="21sp"
          app:layout_constraintLeft_toLeftOf="parent"
          app:layout_constraintTop_toBottomOf="@+id/tv_order_num" />

      <TextView
          android:id="@+id/tv_service_team"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="服务团队：爱达康远程监护团队"
          android:textColor="#ff666666"
          android:textSize="21sp"
          app:layout_constraintLeft_toLeftOf="parent"
          app:layout_constraintTop_toBottomOf="@+id/tv_order_pro" />

      <TextView
          android:id="@+id/tv_period_valid"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="有效期：2019-03-01至2019-12-31"
          android:textColor="#ff999999"
          android:textSize="19sp"
          app:layout_constraintStart_toEndOf="@+id/barrier" />

      <TextView
          android:id="@+id/tv_order_time"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:layout_marginTop="@dimen/dimen_11"
          android:text="订购时间：2019-03-11 12:00:00"
          android:textColor="#ff666666"
          android:textSize="21sp"
          app:layout_constraintStart_toEndOf="@+id/barrier"
          app:layout_constraintTop_toBottomOf="@+id/tv_period_valid" />

      <TextView
          android:id="@+id/tv_order_count"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          android:text="订购数量：500次"
          android:textColor="#ff666666"
          android:textSize="21sp"
          app:layout_constraintStart_toEndOf="@+id/barrier"
          app:layout_constraintTop_toBottomOf="@+id/tv_order_time" />


      <android.support.constraint.Barrier
          android:id="@+id/barrier"
          android:layout_width="wrap_content"
          android:layout_height="wrap_content"
          app:barrierDirection="right"
          app:constraint_referenced_ids="tv_order_num,tv_order_pro,tv_service_team" />

  </android.support.constraint.ConstraintLayout>

Dimensions constraints

You can define minimum and maximum sizes for the ConstraintLayout itself:

• android:minWidth set the minimum width for the layout
• android:minHeight set the minimum height for the layout

可以设置百分比

Practice

需求是美女跟在文字后面，如果文字太长就用省略号

主要着两个属性

app:layout_constrainedWidth="true" // 如果不用这个约束，文字太长,会把直接在Learn more后面
app:layout_constraintHorizontal_bias="0" // 去掉左边的约束
app:layout_constraintHorizontal_chainStyle="packed" // 让文字和美女在一起

<ImageView
    android:id="@+id/iv_duitnow"
    android:layout_width="36dp"
    android:layout_height="36dp"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

<TextView
    android:id="@+id/tv_duit_text"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:layout_marginStart="9dp"
    android:textColor="#282828"
    android:textSize="22sp"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toEndOf="@id/iv_duitnow"
    app:layout_constraintTop_toTopOf="parent"
    android:text="Reload via  Transfer:" />

<TextView
    android:id="@+id/tv_duitnow_id"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_marginTop="4dp"
    android:ellipsize="end"
    android:lines="1"
    android:textColor="#0064FF"
    android:textSize="14sp"
    app:layout_constrainedWidth="true"
    app:layout_constraintEnd_toStartOf="@+id/img_copy"
    app:layout_constraintHorizontal_bias="0"
    app:layout_constraintHorizontal_chainStyle="packed"
    app:layout_constraintStart_toStartOf="@+id/tv_duit_text"
    app:layout_constraintTop_toBottomOf="@+id/tv_duit_text"
    android:text="0124455660124455660124455666" />

<ImageView
    android:id="@+id/img_copy"
    android:layout_width="30dp"
    android:layout_height="30dp"
    android:scaleType="fitXY"
    android:src="@drawable/meitu111e33"
    app:layout_constraintBottom_toBottomOf="@+id/tv_duitnow_id"
    app:layout_constraintEnd_toStartOf="@+id/bt_learn_more"
    app:layout_constraintStart_toEndOf="@+id/tv_duitnow_id"
    app:layout_constraintTop_toTopOf="@+id/tv_duitnow_id" />


<TextView
    android:id="@+id/bt_learn_more"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:paddingLeft="15dp"
    android:paddingTop="7dp"
    android:background="@android:color/holo_blue_light"
    android:paddingRight="15dp"
    android:paddingBottom="7dp"
    android:textSize="10sp"
    android:textStyle="normal"
    app:layout_constraintBottom_toBottomOf="@+id/tv_duitnow_id"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintTop_toTopOf="@+id/tv_duitnow_id"
    android:text="Learn_More" />

https://blog.yorek.xyz/android/other/constraintlayout/#63-wrap_content-11

https://juejin.cn/post/6844903733948579847

https://jishuin.proginn.com/p/763bfbd5c73f
