GreenDao

基本使用

数据库定义
  • Bean

schema：告知GreenDao当前实体属于哪个schema
active：标记一个实体处于活跃状态，活动实体有更新、删除和刷新方法
nameInDb：在数据库中使用的别名，默认使用的是实体的类名
indexes：定义索引，可以跨越多个列
createInDb：标记创建数据库表

  • 基础属性注解

    @Id：主键 Long 型，可以通过@Id(autoincrement = true)设置自增长
    @Property：设置一个非默认关系映射所对应的列名，默认是使用字段名，例如：@Property(nameInDb = “name”)
    @NotNull：设置数据库表当前列不能为空
    @Transient：添加此标记后不会生成数据库表的列

  • 索引注解

@Index：使用@Index作为一个属性来创建一个索引，通过name设置索引别名，也可以通过unique给索引添加约束
@Unique：向数据库添加了一个唯一的约束

  • 关系注解

    @ToOne：定义与另一个实体（一个实体对象）的关系
    @ToMany：定义与多个实体对象的关系

https://blog.csdn.net/speedystone/article/details/72769793

@Convert 自定义类型
1
2
3
4
5
6
public @interface Convert {
    Class<? extends PropertyConverter> converter();
    Class columnType(); //可以在DB中保留的列的类。这仅限于greenDAO原生支持的所有java类。
}
@Convert(converter = NoteTypeConverter.class, columnType = String.class) //类型转换类，自定义的类型在数据库中存储的类型
private NoteType type; //在保存到数据库时会将自定义的类型 NoteType 通过 NoteTypeConverter 转换为数据库支持的 String 类型。反之亦然
Basic
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@Entity
public class Student {

    @Id(autoincrement = true)  // id  递增
            Long id;
    @Unique
    public int studentNo;

    public int age; //年龄
    @Property(nameInDb = "usePhone") //数据库中映射的字段就是 usePhone
    public String telPhone;//手机号

    @Transient  //数据库中不会创建对应的字段
            String sex; //性别

    String name;//姓名
    String address;//家庭住址
    String schoolName;//学校名字
    String grade;//几年级

    private boolean statue;
insert

  • insertData

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    for (int i = 0; i < 4; i++) {
        Student student = new Student();
        student.setStudentNo(i);
        student.age = new Random().nextInt() + 10;
        student.telPhone = RandomValue.getTel();
        student.setName(RandomValue.getChineseName());
        if (i % 2 == 0) {
            student.setSex("男");
        } else {
            student.setSex("女");
        }
        if (i == 0) {
            student.setStatue(true);
        }
        student.setAddress(RandomValue.getRoad());
        student.setSchoolName(RandomValue.getSchoolName());
        long dsoi = studaoImpl.insert(student);
        Timber.i("insertData " + dsoi);
    }

  • insertOrReplace

    1
    2
    3
    4
    Student student = new Student();
    student.setStudentNo(1);
    student.setName("我改名了");
    long df = studaoImpl.insertOrReplace(student);

  • updateData

    1
    2
    3
    4
    Student student = new Student();
    student.setStudentNo(1);
    student.setName("我改名了");
    studaoImpl.update(student);

  • delete

    1
    2
    3
    Student student = new Student();
    student.setId(1l);
    studaoImpl.delete(student);

  • deleteAll

​ studaoImpl.deleteAll();

query
  • QueryAll
1
2
List<Student> dd = studaoImpl.loadAll();
studaoImpl.loadAll().forEach(current->Timber.i(current.toString())); // print student
  • QueryLastState
1
2
3
4
5
6
List<Student> sList = studaoImpl.queryBuilder().limit(1).where(StudentDao.Properties.Statue.eq(false)).list();
Timber.i(sList.toString());
Student student = sList.get(0);
student.setStatue(true);
studaoImpl.update(student);
sList = studaoImpl.queryBuilder().limit(1).where(StudentDao.Properties.Statue.eq(false)).list();
oneToOne
1
2
3
4
5
6
7
@Entity
public class Person {
    @Id(autoincrement = true)
    private long pid;
    private String name;
    private int age;
}
1
2
3
4
5
6
7
8
9
@Entity
public class CreditCard {
    @Id(autoincrement = true)
    private long cid;
    private long pid;
    //idcard和person是一对一关系，外键为personId
    @ToOne(joinProperty = "pid")
    private Person person;
 }
insert
1
2
3
4
5
6
7
8
Long pid = 6L;//personId

Person p = new Person(pid, "xiaoMing", 18);
mPersonDao.insert(p);
Long cid = 2L;//idcardid;
CreditCard c = new CreditCard(cid, 100); //这个写了100（无论写什么）,实际还是6,关联了personId
c.setPerson(p);
mCreditCardDao.insert(c);
query
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
List<CreditCard> list = mCreditCardDao.loadAll();
CreditCard card = list.get(0);
if (card != null) {
    Timber.i("CardInfo  cardid---------->" + card.getCid() + "  personid---------->" + card.getPid());
}
switch (position) {
    case 0:
        selectPersonInfoByCard(card);//根据idcard获取person
        break;
}

  private void selectPersonInfoByCard(CreditCard card) {
        Person person = null;
        if (card != null) {
            person = card.getPerson();
        }
        if (person != null) {
            Timber.i("PersonByCard   personId   + ----------> " + person.getPid() + "  name---------->   " + person.getName() + "    age---------->" + person.getAge());
        } else {
            Timber.i("----获取person信息失败------");
        }
    }

https://juejin.im/post/5a30f79c6fb9a045031014fd

https://blog.csdn.net/qq_34358104/article/details/69833909

OneToMany
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Entity
public class MStudent {
    @Id(autoincrement = true)
    private Long sid;
    private String name;
    private Long tid;
}

@Entity
public class MTecher {
    @Id(autoincrement = true)
    private Long tid;
    private String name;

    //一对多关系，tid为Student表的外键
    @ToMany(referencedJoinProperty = "tid")
    private List<MStudent> students;
}
insert
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
/**
    * 添加Student信息
    */
   private void insertStudent() {
       try {
           Long sid = 1L;
           for (int i = 0; i < 5; i++) {
               MStudent s = new MStudent(sid, "xiaoMing-->" + i, tid);
               mStudentDao.insert(s);
               sid++;
           }
           Log.i("tag", "学生信息添加成功");
       } catch (Exception e) {
           e.printStackTrace();
           Log.i("tag", "学生信息添加失败");
       }
   }


     /**
    * 添加Teacher信息
    */
   private void insertTeacher() {
       try {
           String name = "Miss zhang";
           MTecher mTecher = new MTecher(tid, name);
           mTecherDao.insert(mTecher);
           Log.i("tag","教师信息添加成功");
       } catch (Exception e) {
           e.printStackTrace();
           Log.i("tag","教师信息添加失败");
       }
   }
query
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
private void selectTeacher() {
    MTecher t = null;
    try {
        t = mTecherDao.loadByRowId(tid);
        if (t != null){
            Log.i("tag","查询教师信息---->成功");
            Log.i("tag","tid--->"+t.getTid());
            Log.i("tag","teacher's name----->"+t.getName());
            selectStudentByTeacher(t);
        }else{
            Log.i("tag","查询表中没有该教师信息");
        }
    } catch (Exception e) {
        e.printStackTrace();
        Log.i("tag","查询教师信息---->失败");
    }
}

  /**
     * 根据获取得到的Teacher获取其名下的学生信息
     * @param t
     */
    private void selectStudentByTeacher(MTecher t) {
        List<MStudent> list = t.getStudents();
        if (list != null && list.size() > 0){
            for (MStudent mStudent : list) {
                Log.i("tag","sid--------->  "+mStudent.getSid() +"    tid--------->"+mStudent.getTid()+"  name-------->"+mStudent.getName());
            }
        }else{
            Log.i("tag","--------获取学生信息失败--------");
        }
    }
ManyToMany
1
2
3
4
5
6
7
8
9
10
@Entity
public class NTeacher {

    @Id(autoincrement = true)
    private Long tid;
    private String name;
    @ToMany
    @JoinEntity(entity = TandSRelative.class, sourceProperty = "tid", targetProperty = "sid")
    private List<TandSRelative> list;
 }
1
2
3
4
5
6
7
8
9
10
11
@Entity
public class NStudent {

    @Id(autoincrement = true)
    private Long sid;
    private String name;

    @ToMany
    @JoinEntity(entity = TandSRelative.class,sourceProperty = "sid",targetProperty = "tid")
    List<NTeacher> teacherList;
}
1
2
3
4
5
6
7
8
@Entity
public class TandSRelative {

    @Id(autoincrement = true)
    private Long tsid;
    private Long tid;//teacher的id
    private Long sid;//student的id
}
insert
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
    //2个教师和3个学生的关系
//教师1，带学生1、2
//教师2，带学生1、3
//学生1，选修教师1和教师2的课
    private void addTeacherStu() {
        List<NTeacher> teacherList = new ArrayList<>();
        for (long i = 1; i < 3; i++) {
            NTeacher teacherBean = new NTeacher();
            teacherBean.setTid(i);
            teacherList.add(teacherBean);
        }
        daoSession.getNTeacherDao().insertInTx(teacherList);

        List<NStudent> studentList = new ArrayList<>();
        for (long j = 1; j < 4; j++) {
            NStudent studentBean = new NStudent();
            studentBean.setSid(j);
            studentList.add(studentBean);
        }

        //教师1带学生1、2
        List<TandSRelative> teacherTeachStuList = new ArrayList<>();
        TandSRelative tandSRelative1 = new TandSRelative(null, 1L, 1L);
        teacherTeachStuList.add(tandSRelative1);

        TandSRelative tandSRelative2 = new TandSRelative(null, 1L, 2L);
        teacherTeachStuList.add(tandSRelative2);

        TandSRelative tandSRelative3 = new TandSRelative(null, 2L, 1L);
        teacherTeachStuList.add(tandSRelative3);

        TandSRelative tandSRelative4 = new TandSRelative(null, 2L, 3L);
        teacherTeachStuList.add(tandSRelative4);

        daoSession.getTandSRelativeDao().insertInTx(teacherTeachStuList);

    }

https://www.cnblogs.com/Free-Thinker/p/10654474.html

https://juejin.im/post/5a30f79c6fb9a045031014fd

https://blog.csdn.net/RobotHost/article/details/70098744

migration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public class MySQLiteOpenHelper extends DaoMaster.OpenHelper {

    public MySQLiteOpenHelper(Context context, String name, SQLiteDatabase.CursorFactory factory) {
        super(context, name, factory);
    }

    @Override
    public void onUpgrade(Database db, int oldVersion, int newVersion) {
//        super.onUpgrade(db, oldVersion, newVersion);
        MigrationHelper.migrate(db, new MigrationHelper.ReCreateAllTableListener() {
            @Override
            public void onCreateAllTables(Database db, boolean ifNotExists) {
                DaoMaster.createAllTables(db, ifNotExists);
            }

            @Override
            public void onDropAllTables(Database db, boolean ifExists) {
                DaoMaster.dropAllTables(db, ifExists);
            }
        }, StudentDao.class); //可以添加多个
    }
}
1
2
3
4
5
6
//        DaoMaster.DevOpenHelper helper = new DaoMaster.DevOpenHelper(this, "dblearn.db");
        MigrationHelper.DEBUG = true;
        MySQLiteOpenHelper helper = new MySQLiteOpenHelper(this,"dblearn.db",null);
        SQLiteDatabase db = helper.getWritableDatabase();
        DaoMaster daoMaster = new DaoMaster(db);
        daoSession = daoMaster.newSession();
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
@Entity
public class Student {

    @Id(autoincrement = true)  // id  递增
            Long id;
    @Unique
    public int studentNo;

    public int age; //年龄
    @Property(nameInDb = "usePhone") //数据库中映射的字段就是 usePhone
    public String telPhone;//手机号

    @Transient  //数据库中不会创建对应的字段
            String sex; //性别

    String name;//姓名
    String address;//家庭住址
    String schoolName;//学校名字
    String grade;//几年级

    private boolean statue;


    @ToOne(joinProperty = "name")
    IdCard student;


    private String migrate; //新添加的字段 迁移
  }

https://github.com/yuweiguocn/GreenDaoUpgradeHelper/blob/master/README_CH.md

https://stackoverflow.com/questions/13373170/greendao-schema-update-and-data-migration/30334668#30334668

查看数据库

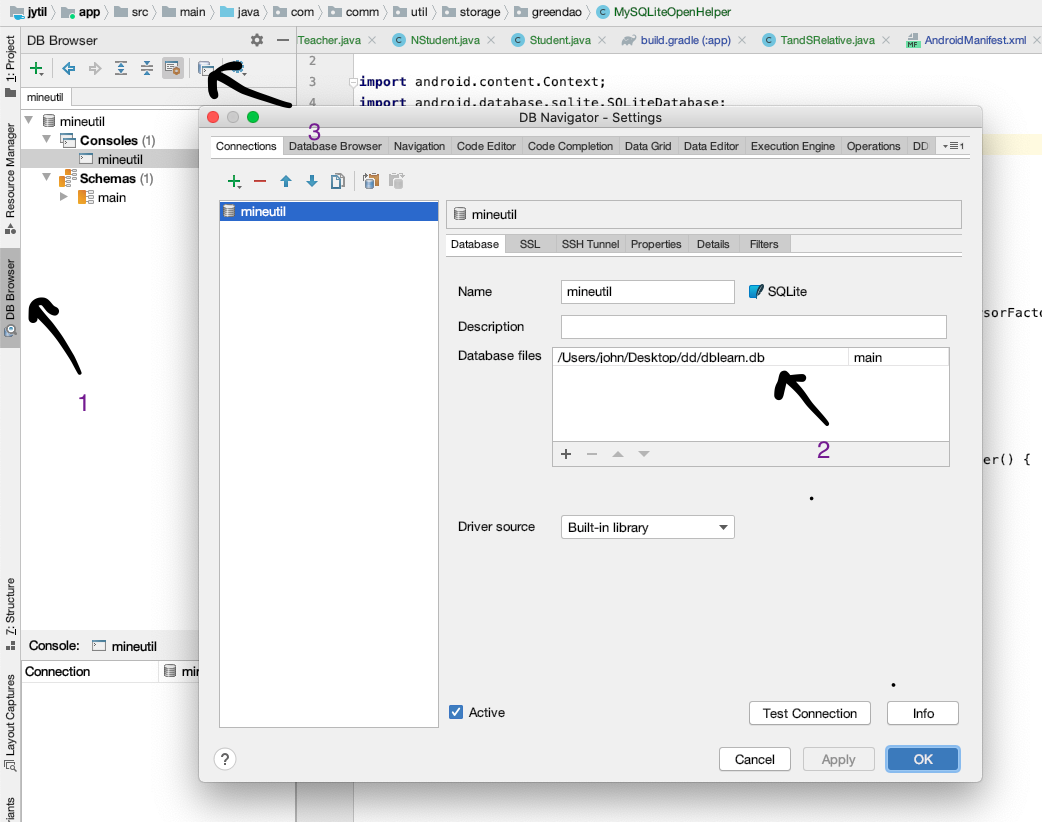

database navigator

![check_Screen Shot 2020-04-13 at 5.59.22 PM](GreenDao/check_Screen Shot 2020-04-13 at 5.59.22 PM.png)

![Screen Shot 2020-04-13 at 6.04.11 PM](GreenDao/Screen Shot 2020-04-13 at 6.04.11 PM.png)

C:\Users\john\Desktop\dbsqlite

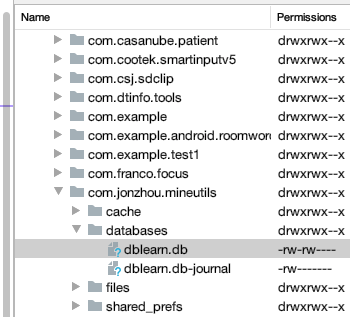

Device file explorer里面查看

data/data/{$packname}/mine

https://blog.csdn.net/yu75567218/article/details/78904909

数据缓存

ANDROID
#DB
GreenDao
https://noteforme.github.io/2019/08/12/GreenDao/
Author
Jon
Posted on
August 12, 2019
Licensed under
